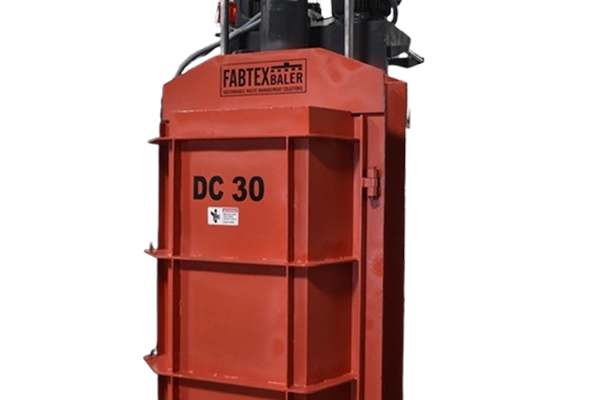

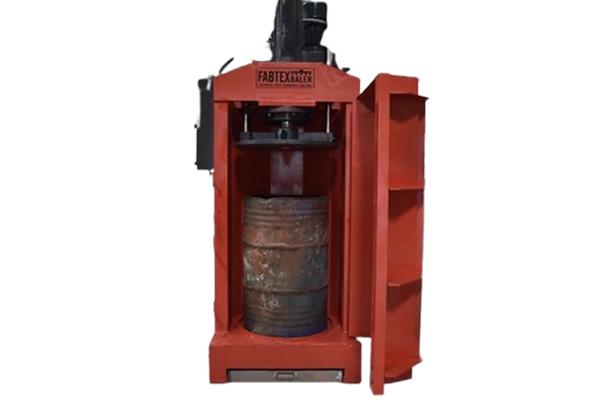

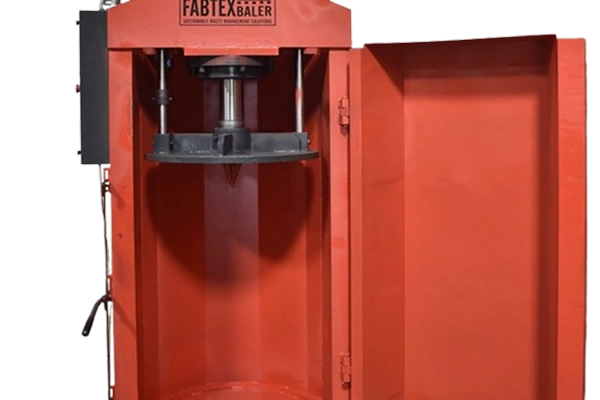

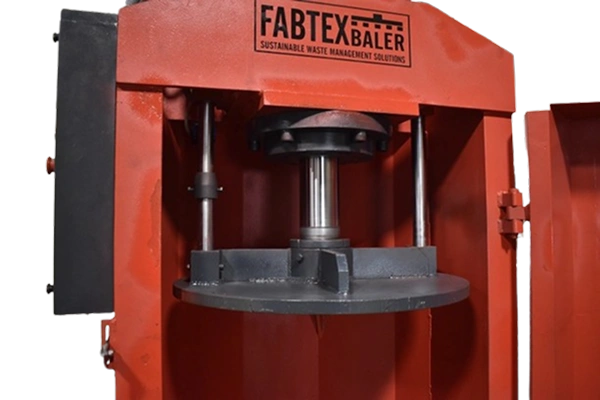

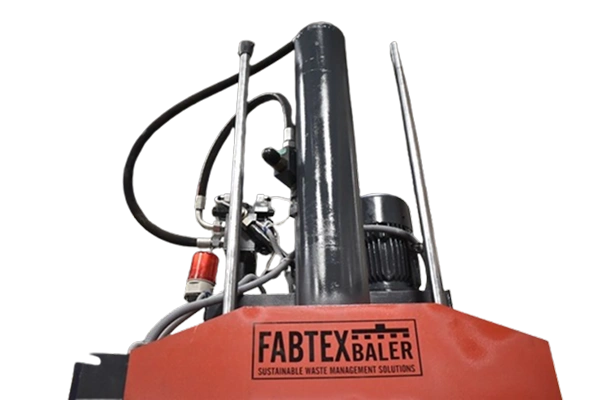

Drum Crusher
Description
This robust Hydraulic Drum Crusher delivers high-performance compaction for standard 55-gallon steel drums, engineered to reduce bulk volume swiftly and reliably. Ideal for operations seeking safer drum handling and optimized storage, it offers dual functionality and is tailored to meet U.S. industrial standards.
Applications
- MS drums
- Oil drums
- Steel drums
- Paint drums
Technical Details
| Type | FAB/DC/30 | FAB/DC/40 |
|---|---|---|
| Capacity (tons / lbs) | 30 tons / 66,138.7 lbs | 40 tons / 88,184.9 lbs |
| Chamber Size (L × W × H) (mm / inch) | 760 × 760 × 1000 mm / 29.92 × 29.92 × 39.37 inch | 760 × 760 × 1000 mm / 29.92 × 29.92 × 39.37 inch |
| Drum Size after compaction (mm / inch) | 760 × 760 × 100 - 150 mm / 29.92 × 29.92 × 3.94 - 5.91 inch | 760 × 760 × 80 - 100 mm / 29.92 × 29.92 × 3.15 - 3.94 inch |
| Motor Power (HP) | 7.5 | 10 |
| Oil Capacity (Lit) | 100 | 120 |
| Cycle Time (secs) | 60 | 35 |
| Weight of the Machine (tons / lbs) | 1.2 tons / 2,645.55 lbs | 1.8 tons / 3,968.32 lbs |
Core Performance
- Rapid Compaction Cycle: Flattens steel drums in less than 30 seconds, reducing handling time.
- Two-Mode Capability: Swap out the crushing platen to compact material inside drums as needed.
- Adaptable Power Setup: Operates via 3-phase supply with configurable voltage for varied site requirements.
- Volume Efficiency: Designed to support moderate processing volumes, ideal for non-hazardous indoor use.
- Purpose-Built for Reliability: Withstands repeated industrial operation without sacrificing precision.
Engineered for Safety
- Secured dual-latch enclosure: Built-in door interlock for maximum protection.
- Hydraulic pressure safeguards: Prevent system overload automatically.
- Emergency stop feature: Allows immediate operator control in critical situations.
- Regulation compliance: Fully meets OSHA and ANSI standards for safety.
Operational Convenience
- Forklift-Ready: Integrated slots make equipment relocation easy.
- Liquid Capture System: Optional tray helps manage fluid runoff during compression.
- Maintenance-Friendly Build: Designed for minimal servicing and maximum uptime.
Versatile Industry Fit
- Perfect for manufacturing lines, recycling stations, chemical handling rooms, and facilities with frequent drum turnover.
- Custom integration options are available for seamless workflow alignment.
